ROBO SCAN 600-BEST UNDERGROUNDWATER DECTOR

BRAND - 3D LOCATORS

product name - robo scan 600

product code - rs-600 3d

technology- autonomus profiling

version- v.1.0

sensory- lidar, non contact reciever, proximity, obstacle,gnss-satellite sensor.

processor-tensillica xtensa lx6 microprocessor with 2 cores, tensillica xtensa lx6 microprocessor with 2 cores,eeprom,waas, egnos, msas, gagan,

automation- 180 degree lhs,180 degree rhs, 360 degree scan area, obstacle avoidance upto 20 meters, scan resolution 50*50m

application- groundwater survey, tunnel detection, mineral zone detection, borewell point detector, 3d water detector, 3d profiler, s 500 water detector, open well scanner, 2d borewell scanner, 3d borewell scanner, geological scanner, geology detector.

3d imaging system- the robo scan 600 has the capability of plotting autonomus 2d surface map and 3d subsurface map with depth map and featured reporting.

power-pair-dc-5000mv-3a external battery, dc-5000mv-2a internal battery.

PRODUCT WORKING

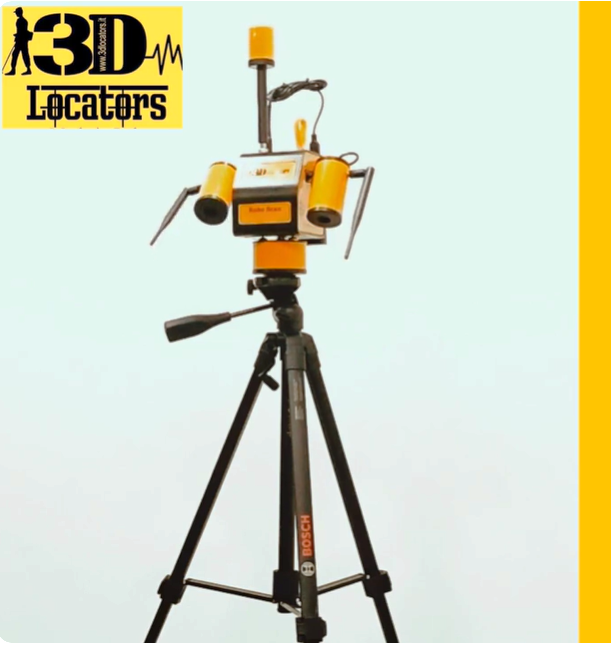

Pair of electrodes are connected to the ground, the robotic scanner is placed on the Tripod in a constant position, battery is connected to the system, along with the GNSS antenna, the system arms starts moving in a circular rotation of 360 degree, the sub arms scans 0-90 degree depending on the zone, the ground transmitter transmits the data amplified and the receiver fetches the data to process. In case of any obstacles the measurements are paused with a alarm.

The process of gathering data and processing it into a 2D map is simultaneous and automated. Once after completion of the survey.

System Generates

2D groundwater profile

3D groundwater profile

Lithological parameters

Automated positioning

REPORT

ROBO SCAN UNDERGROUNDWATER DETECTOR IS THE FIRST SYSTEM TO DEVELOP REPEATABILITY BASED ON SUBSURFACE STABILITY AUTOMATION TECHNOLOGY.

The RS-600 System is crafted with highly skilled Autonomous Robotic Engineers, the system can track the exact groundwater preferable location by scanning in 360 Degree, the transmitter electrodes are crafted to reduce the noise data and capture high accuracy.

How Accurate is ROBO SCAN?

We all have used various systems in the market, but we challenge no system can generate the same map or report when you scan the same location multiple times.

yes, Robo scan is 98% efficient in scanning and generating the same report even if cross checked multiple times, even after many days

Why should i go for Robo scan?

all old technologies were automated for mapping but manual errors of inserting electrodes caused failures in survey, Robo scan is an autonomous AI-developed robot so 99% error free data.

LOCATORS Vs ROBO SCAN?

Again the same locators rotate on a dowsing technique so the pin point assisted may vary depending on the handling person, but Robo scan is Autonomous perfect scanning with precise position even if you cross check after drilling the precision will be the same.

Do we have permission to use ROBOTS?

Robo Scan is an Industrial segment detection Robot with classification and Testing Certified, so no worries of certifications.

Can a beginner use Robo Scan?

Robo Scan is crafted for Expert Level Groundwater Consultants, but beginners with good experience can understand the working of ROBO SCAN (please check a field demo for decisions).

We always instruct beginners to start with our Locator series - Robo scan requires a little bit of 2D &3D map analysis and geological knowledge to correspond the data with the land conditions.

GEOLOGY DIFFERENT TYPES OF SURVEY FOR GROUNDWATER

VERTICAL ELECTRICAL SOUNDING, INDUCED POLARIZATION SURVEY, SEISMIC SURVEY, TRANSIENT ELECTROMAGNETIC SURVEY, ROBOTIC GROUNDWATER SURVEY, GNSS STATELLITE SURVEY EQUIPMENTS ARE MANUFACTURED BY 3D LOCATORS

CLASSIFICATION OF ROCKS & SOIL IS IMPORTANT IN GROUNDWATER

There are three major classes of rocks, IGNEOUS, SEDIMENTARY, and METAMORPHIC, with the following attributes: IGNEOUS ROCKS form by crystallization from molten or partially material, called MAGMA. ROBO SCAN 3D WATER DETECTOR IS TESTED ON ALL GEOLOGICAL FORMATIONS.

FOR MORE INFO CONNECT WITH OUR REPRESETATIVE

www.hindustandetectors.com
